HDPE Pre-Insulated Pipe Extrusion Line with Vacuum Calibration, Siemens PLC Control, and Dust-Free Planetary Cutting

The HDPE jacket pipe extrusion line for pre-insulated pipes is designed to produce thin-wall protective shells for polyurethane foam-insulated, prefabricated, directly buried insulation pipes. Manufactured by Huashida, a leading Chinese supplier, the line adopts advanced vacuum calibration technology to ensure stable operation and high product quality.

The extrusion line runs smoothly and is easy to operate, featuring a Siemens PLC control system for precise and reliable automation. Its high-speed and high-efficiency performance helps customers significantly reduce production costs, while its environmentally friendly and energy-saving design meets modern sustainability requirements.

HDPE Jacket Pipe Diameter: Ø48-2000 mm

Carrier Pipes: Steel / Stainless steel / Plastic / Copper

Insulation Layer: Polyurethane rigid foam material

PE-110/500

Main Components of the Production Line:
The production line is composed of the following equipment:

▪ Vacuum loader (1 set)

▪ Hopper dryer (1 set)

▪ High-efficiency single-screw extruder (1 set)

▪ Vacuum calibration table (1 set)

▪ Water spray cooling tank (1 set)

▪ Haul-off machine (1 set)

▪ Dust-free cutting machine (1 set)

▪ Discharging frame (1 set)


1. High-efficiency single screw extruder
Single screw is with barrier & mixing head; new model barrel with slotting (channel), Both make the security of good jellification, large output and stable performance.

2. Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings.
The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.

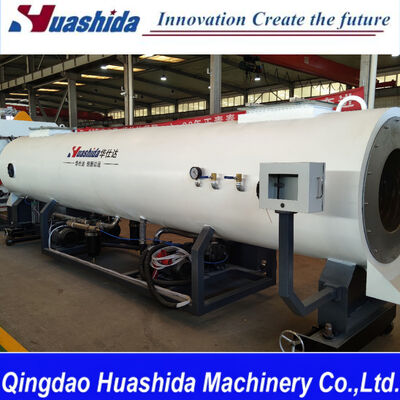

3. Vacuum Calibration Tank
Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter.  Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

4. Haul-off Machine
Haul-off machine is mainly composed of driving device, tracks, clamping structure, adjusting system, side plate and foundation bed. Haul-off tracks are driven by AC motor with frequency conversion control to adapt to different extrusion speed.
Automatic length measuring device realizes cutting at a set length.

5.  No-Dust Cutter
It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.

6.Control system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system can be designed according to customers' requirements.

7.Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.

√ Compact structure, small footprint
√ High automation, one-person operation
√ Long service life and stable performance
√ High-output energy-saving extruder
√ Smooth pipe surface and uniform wall thickness
√ No raw material waste
√ One-time forming, no edge trimming required

Provide complete turnkey production solutions, including design, installation, commissioning and training

Share extensive global production line experience

Supported by a team of senior professional engineers

Equipped with a national-level plastic machinery expert workstation in China

80+ Invention & Utility Model Patents,50+ Exporting Countries & Regions,70% Overseas Customer Share

District heating and cooling pipeline systems

PU foam pre-insulated steel pipes

Oil & gas thermal insulation pipelines

Industrial heat transmission pipelines

Municipal underground pipeline protection
